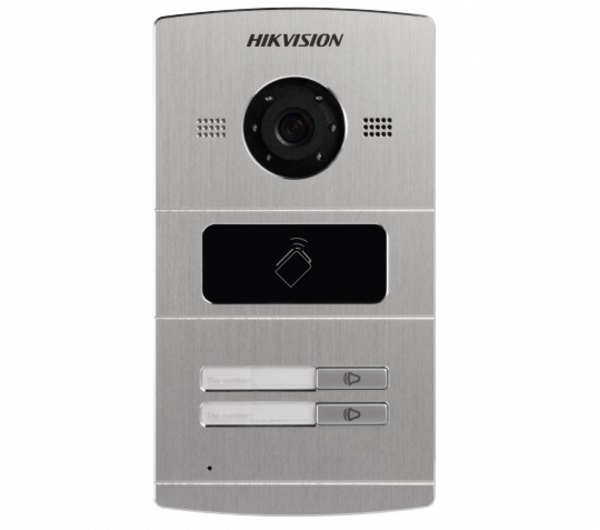

Camera chuông cửa IP HIKVISION DS-KV8202-IM

System Parameters

Processor:

High-Performance Embedded SOC Processor

Operation System:

Embedded Linux Operation System

Video Parameters

Camera:

CMOS Low Illumination 1.3 MP HD Colorful Camera

Video Compression Standard:

H.264

Resolution:

1280 x 720

Video frame rate:

25 fps

Audio Parameters

Audio Input:

Built-in Omnidirectional Microphone

Audio Output:

Built-in Loudspeaker

Audio Compression Standard:

G.711 U

Audio Compression Rate:

64 Kbps

Audio Quality:

Noise Suppression and Echo Cancellation

Network Parameters

Ethernet:

10/100 Mbps Self-Adaptive Ethernet

Network Protocol:

TCP/IP, RTSP

Access Control Parameters

Internal Card Reader:

Built-in IC Card Reader

Exit button:

Exit Button for Opening the Door

Door Magnetic Detection:

Detects Door Magnetic Status

Light Supplement

Light Supplement Mode:

IR Supplement

Alarm Parameters

Alarm Input:

Door Magnetic Alarm, Tampering Alarm

Device Interfaces

Network Interface:

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

RS-485:

1 RS-485 Half-Duplex Port

I/O Input:

4

I/O Output:

1

General

Indoor Station Access Amount:

2

Material:

Aluminum Alloy

Power Supply:

12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)

Power Consumption:

≤12 W

Working Temperature:

-40° C to +70° C (-40° F to 158° F)

Working Humidity:

10% to 90%

IP Protection Level:

IP65

Dimensions(L × W × H):

182 mm × 100 mm × 33 mm (7.17' × 3.94' × 1.30')

Certification:

FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
